Confirmed Structure Transition Map [Pineify]Confirmed Structure Transition Map
Overview
This Pine Script v6 indicator separates confirmed swings, break-of-structure events, and direction candidates. A finite state appears as a stepped price corridor.
Problem Definition
A common baseline finds fractal highs and lows, then labels any crossing BOS or CHoCH. It hides the pivot bar, the later confirmation bar, and the still later break. One level may emit repeated labels, while one counter-break may be called a reversal. Label density replaces a distinction between swing formation, continuation, and transition. This script separates those events and never triggers an earlier break with future information.
Design Rationale
Confirmed pivots provide stable levels; a moving extreme has no fixed identity. Each high and low becomes a one-use rail. A break with the bias is BOS; the first qualified counter-break is only a potential CHoCH. Bias changes after a fresh rail breaks again in that direction. Crossing the frozen opposite rail or age limit cancels the candidate. This rejects immediate reversal on one counter-break. The tradeoff is lag for explicit evidence. ATR scaling filters tiny overruns but does not estimate probability.
Key Features
Optional confirmed HH, LH, HL, and LL labels.
One-use rails that suppress duplicate breaks.
BOS, potential CHoCH, shift, invalidation, and expiry states.
ATR displacement, state corridor, alerts, and dashboard.
How It Works
The script reads chart OHLC and a symmetric pivot window. A pivot is accepted after its right-side bars close. Its price and index are stored, compared with the prior same-type pivot, and armed as a rail. If price already exceeded the required displacement when it became knowable, that rail is consumed without a hindsight event.
Each confirmed bar compares the Close or Wick probe with both rails. Distance beyond a rail is divided by ATR and must meet Minimum Break Displacement. On a two-sided outside bar, the larger normalized wick defines one event. The first event sets bias; a same-direction event is BOS. A counter-event freezes break rail, invalidation rail, displacement, and start bar. Confirmation needs a fresh rail and second break in the candidate direction. Invalidation or expiry ends the candidate. The corridor shows bullish, bearish, pending, or neutral state; early bars stay neutral.
How Multiple Indicators Work Together
This is one dependent state model, not a mashup. Pivot confirmation supplies stable rails; otherwise levels move while tested. ATR displacement separates a tiny overrun from a range-scaled break. The ordered state machine consumes those qualified breaks; otherwise crossings remain a label stream. The corridor encodes the resulting state instead of adding an unrelated signal.
Trading Ideas and Insights
Read BOS as evidence that price cleared a rail with the established bias, not as an entry command. Violet marks a candidate; amber shows why it ended. A wide corridor requires a larger absolute move. Apply separate risk, liquidity, and execution rules: the map does not select stops, size positions, or forecast events.
Unique Aspects
The contribution is an ordered lifecycle. Rails arm only when knowable, each fires once, a counter-break stays provisional, and a second newly armed break is required before bias changes. Invalidation level and age limit freeze at candidate start, so later pivots cannot rewrite the test. One corridor carries bias and transition while labels, wash, bar colors, and table remain optional. This is more than a renamed fractal plot.
How to Use
Begin with Close and default pivots, then check swing density for the market and timeframe. Read rails first: BOS continues state, P-CH opens a candidate, and SHIFT completes the two-break transition. HH/HL locations are revealed after the right-bar delay, not known on their historical bars. Use BOS and shift alerts only within an existing process.
Customization
Pivot Left/Right Bars control granularity and delay: smaller values add noise; larger values add lag. Close requires settlement beyond a rail. Wick uses extremes and resolves outside bars by larger excursion. Minimum Break Displacement sets ATR clearance; Candidate Expiry limits age. Corridor, labels, wash, bar colors, and dashboard are independently configurable.
Assumptions and Limitations
Pivots need future bars for confirmation, so markers appear on pivot bars only after the right-side delay; breaks and shifts remain on confirmation bars. Probes move live, but state and alerts require bar close. ATR and pivot settings are market-sensitive. Gaps can jump rails, Wick mode reduces an outside bar to one event, and chop can repeat candidates. The model reads chart prices, not order flow, news, higher timeframes, or execution quality. A shift is an ordered event, not a guaranteed reversal or profitable trade.
Conclusion
The map turns delayed pivots and breaks into an auditable sequence: location, one-use break, provisional counter-break, then confirmation or invalidation. It provides structural context; interpretation and risk remain with the user.
Indicador
Indicador
Structure Weaver [JOAT]Weaves raw price into readable market structure — swing labels, structure breaks, and a premium/discount dealing range.
◆ WHAT IT IS
Structure Weaver reads price the way a discretionary trader maps it: it classifies each confirmed swing, marks where structure genuinely breaks, and frames the active range into zones of relative value. It is a pure context tool for understanding trend and location — it does not print buy/sell signals.
This is 100% original code, written from scratch. It does not copy any other market-structure script.
◆ HOW IT WORKS
1. Swing classification. Confirmed swing points (using your chosen strength) are labelled live as:
• HH higher high, HL higher low — bullish rhythm
• LH lower high, LL lower low — bearish rhythm
Reading these in sequence is the foundation of trend structure.
2. Structure breaks — BOS and CHoCH. When price breaks the last confirmed swing, the tool stitches a labelled thread and distinguishes two cases:
• BOS (Break of Structure) — a break in the direction of the existing trend: continuation
• CHoCH (Change of Character) — the first break against the trend: a potential shift in control
You choose whether breaks confirm on a close or a wick .
3. The dealing range. The span between the last confirmed swing low and high is shaded into:
• Premium — the upper zone (expensive relative to the range)
• Equilibrium — a central band around the 50% level
• Discount — the lower zone (cheap relative to the range)
This gives every pullback objective context — are you buying in discount or chasing in premium.
◆ WHAT YOU SEE
• Live HH / HL / LH / LL swing labels
• BOS (solid) and CHoCH (dashed) structure threads, oldest recycled to keep the chart clean
• A shaded Premium / Equilibrium / Discount dealing range with an equilibrium line
• A resizable dashboard showing the current structure bias, the last event and its age, a BOS/CHoCH tally, the active swing high/low with holding-or-taken status, and where price sits in the range with a position gauge
◆ HOW TO USE IT
• Read the swing sequence and structure color for trend bias; a CHoCH is your earliest warning that control may be changing hands.
• Favor entries from discount in an uptrend and from premium in a downtrend , using equilibrium as the pivot.
• A BOS in trend direction is continuation confirmation.
• Works on all symbols and timeframes. Increase swing strength to weave only major structure; lower it for finer detail.
◆ NOTES & LIMITATIONS
Because swings are only confirmed once the required bars have printed on both sides, labels and breaks appear after that confirmation — this is by design and avoids repainting on already-closed structure. It is a context tool, not financial advice, and does not predict direction on its own. Combine it with your own method and risk management.
— made with passion by officialjackofalltrade
Indicador
SMC Analytics Pro Hey traders! 👋
Finding a clean, non-lagging Smart Money Concepts (SMC) indicator on TradingView can be frustrating. Most public scripts end up squishing your chart scale , lagging your browser, or cluttering your screen with hundreds of overlapping boxes. 😩
So I decided to code a complete, ultra-precise Smart Money Concepts engine in Pine Script v5—rebuilt from the ground up to keep your charts smooth, clean, and 100% accurate! 🚀✨
The Core Idea: Institutional trading isn't about guessing where price is going—it's about tracking where bank liquidity lives. This indicator maps out market structure, institutional order blocks, and imbalance gaps without crowding your price action.
🔥 Key Features That Make This Unique
Dual Structure Architecture: Automatically plots both Internal Structure (micro scalp breaks) and Swing Structure (macro trend breaks) so you never trade against the major market trend.
Structure-Triggered Order Blocks (OB): No more clutter! OBs are drawn only when a real Break of Structure (BOS) or Change of Character (CHoCH) occurs at the origin of the impulse move.
Real-Time Mitigation Engine: When price retraces and touches an Order Block or fills a Fair Value Gap (FVG), the zone automatically vanishes in Present Mode to keep your chart tidy.
Fixed Chart Scale Guarantee: Unlike other SMC scripts that distort your vertical price scale and make candles look flat, this indicator keeps your chart scaling perfectly proportioned on every single timeframe! 📈
Fair Value Gaps (FVG): Identifies genuine 3-candle imbalance gaps where big money stepped in with aggressive market orders.
Liquidity Pools (EQH / EQL): Highlights Equal Highs and Equal Lows where retail stop losses are sitting waiting to be swept.
Dynamic Equilibrium (50%) Level: Displays the exact 50% midpoint of the active swing range so you always know if you're buying in Discount or selling in Premium .
🛠️ How to Use This in Your Trading Setup
Identify the Macro Trend: Look for solid green/red BOS lines and check if swing points are making Higher Highs (HH) or Lower Lows (LL).
Wait for Price to Enter a Zone: Look for price to retrace back down into an unmitigated Bullish Order Block or fill a Bullish FVG below the Equilibrium (50%) line.
Look for Internal Confirmation: Drop down to a lower timeframe and wait for a dashed iBOS / CHoCH break in your direction before taking the trade! 🎯
⚡ Multi-Timeframe Compatibility
Whether you are scalping the 1-minute chart on CAPITALCOM:NAS100 , day trading Forex on the 15-minute, or swing trading Crypto on the Daily, the logic adapts dynamically to any market and timeframe! 🌍
Inputs can be customized in the settings panel—feel free to tweak the pivot lookbacks to match your personal trading style.
If you find this indicator helpful for your daily analysis, please hit the Boost button 🚀 and leave a comment below! Happy trading! 🙌 Indicador
Indicador
Indicador
Market Structure with ATR trailing stop [EDGE]Market Structure with ATR trailing stop — Multi-Timeframe Structure + ATR Trailing Stop.
A precision market-structure tool that goes beyond a simple pivot indicator by combining SMC-style swing detection, multi-timeframe CHoCH/BOS tracking, and a school-standard ATR trailing stop — all adapted automatically to the chart timeframe.
How it works:
The indicator scans pivot highs and lows using an SMC-calibrated Length (automatically picked for the current timeframe or set manually). Each broken pivot is classified as CHoCH (character change, phase start) or BOS (continuation) using your chosen breakout method — Wick, Body, or 2-Close confirmation. The same logic is mirrored across D1, H4, H1 and M5 in a summary table, so you always see whether the higher timeframes agree with the current one.
What it calculates:
- Swing pivots with HH / HL / LH / LL classification (optional labels)
- CHoCH / BOS counter — "UP (C)", "UP (C+1)", "DOWN (C+2)" — showing phase maturity per timeframe
- Trend direction on D1 / H4 / H1 / M5 in one summary table
- ATR trailing stop with EMA basis and one-directional ratcheting
- Live ATR% with a dynamic percentile-based "normal range" window
- Distance to trailing stop in %
Key features:
- Auto Length by timeframe (SMC standard: M5 = 7, H1 = 15, H4 = 20, D1 = 30 …)
- Three breakout modes: Wick (early), Body (default), 2-Close (conservative)
- Auto ATR multiplier and EMA basis per timeframe — sourced from Raschke, Carter, Chandelier Exit, Minervini, Wilder and Weinstein school standards
- Multi-timeframe trend dashboard with CHoCH/BOS phase counter
- Dynamic ATR% range (percentile lookback) — instant read on whether volatility is normal, muted or hot
- Configurable trailing-stop history window (2 or 10 last ranges)
- Optional HH / HL / LH / LL swing labels
- Fully customizable up/down colors
- Built-in alerts: trend flip up, trend flip down, stop touch up, stop touch down
- Disabled on timeframes below 5M with an on-chart notice — the indicator is calibrated for 5M and above
Who it's for:
Traders who want a single, opinionated structure tool that reads the market the same way institutional and SMC playbooks do — with automatic parameters that respect every timeframe, a clean multi-TF dashboard, and a trailing stop built from real trading-school standards rather than arbitrary defaults. Indicador
Confluence Context - Regime Filter + Market Structure🎯 CONFLUENCE CONTEXT — REGIME FILTER + MARKET STRUCTURE
Your signal tool tells you WHEN. This tells you WHETHER.
Confluence Context — Regime Filter + Market Structure is the companion layer that sits on top of whatever you already trade and answers the one question that wrecks most setups: does the context actually agree? It draws no zones and fires no entries — it reads the environment, scores it, and hands you a single glance-readable verdict. 📊
🔥 WHY IT EXISTS
Most signal tools fire identically in every environment — trending, ranging, dead, or violent. The killer is the clean-looking signal taken in the wrong context: a breakout in a dead session, a continuation against structure, a trend entry while volatility is flatlined. Confluence Context — Regime Filter + Market Structure gates your entry with the four things signal tools love to ignore.
🧩 THE FOUR LAYERS
📐 Market Structure — Swing pivots labeled BOS (Break of Structure, with the trend) and CHoCH (Change of Character, against it), with a running bias: Bullish, Bearish, or Neutral. Confirmed-bar only, capped label history so the chart doesn't clutter.
🌊 Volatility Regime — ATR vs its own moving average, sorting the tape into Low, Normal, or Extreme. This is the regime filter — it tells you whether you're in the environment your strategy was actually built for. Flip on H1 mode to inherit a higher-timeframe regime read from the prior closed 60-min bar, no repaint.
🕐 Session Filter — London / New York / Asia with pair presets (JPY, USD majors, AUD/NZD) or fully custom windows + timezone. Reads the live wall clock, so it flips to "Closed" the moment the market closes instead of freezing on the last in-session bar.
📈 Trend — Price vs a configurable EMA. Simple, and it earns its weight.
These four checks are fused into two weighted tallies instead of shipped as four separate indicators because context only breaks down as a whole — a bullish structure read means nothing if the session is dead and volatility is flat. Splitting them apart would just recreate the blind spot this indicator exists to close.
⚡ HOW THEY STACK (the scoring engine)
Every layer casts a weighted vote into TWO independent tallies — a bull score and a bear score, scored separately so you can actually see when context is fighting itself instead of just being quiet. A fifth slot — External Zone Hit — is a manual toggle (bull and bear separately) you flip the moment YOUR zone or level tool confirms a touch. That's what makes this a companion, not a standalone: it lets your existing setup feed the one input it can't infer.
🎯 THE HIGHLIGHTER
Clear your threshold on the dominant side and the Highlighter collapses both scores into one verdict — Stacked Long, Leaning Long, Balanced, Leaning Short, or Stacked Short. Paint it on the candles, the background, or both. Two candle modes: Verdict Tint paints every bar by net confluence, or BOS/CHoCH Candle paints only the single bar where a structure break confirms, in that event's own label color — a quieter option if you just want structure flips to pop. It confirms context, it doesn't call trades, so it speaks BULLISH / BEARISH, never BUY / SELL.
📋 THE LIVE TABLE
A full breakdown, not just a verdict — all six weighted conditions get their own row with a pass/fail check for both bull and bear, plus ATR, active session, and bias/regime context underneath. An optional oversized headline row sits on top: CONTEXT: BULLISH · Stacked Long · 9 / 2. Six position options, so it never collides with your other panels.
🔔 ALERTS
Structure breaks, all four regime transitions, session opens and full-close, and confluence threshold crosses — all confirmed-bar only. The threshold alerts carry a full payload (symbol, timeframe, direction, score, bias, ATR, session, regime, timestamp) so your webhook or notification has enough context to act on without opening the chart. An optional toggle also alerts when a score drops back below threshold.
🛠️ HOW TO USE IT
Slap it on top of whatever you trade. Tune the EMA, regime multipliers, and session windows to your instrument. Read the verdict off the table or the candle tint — filter your primary signal so you only pull the trigger when context agrees, or let the confluence alert ping you when the dominant side clears threshold.
⏱️ BEST TIMEFRAMES
Built to shine on M15 through H4 — enough structure to mean something, fast enough to act on.
♾️ The whole idea: it stays useful after it's been on your chart for a while.
Repaint policy: structure, regime, and score history evaluate on confirmed bars; the HTF regime read uses a closed-bar offset and doesn't repaint; the session display is live by design and doesn't touch history. Settings are starting points, not advice — tune them to your market and validate before risking capital. Indicador
Indicador
Levels MarkerLevels Marker is an all-in-one intraday price-action toolkit that combines
several commonly-used reference levels and market-structure tools into a
single indicator — no need to load five separate scripts.
█ FEATURES
🔹 Previous Day High / Low (PDH / PDL)
Automatically plots yesterday's high and low as horizontal lines with labels.
Valid for the entire current trading day and refreshes at the start of each
new session.
🔹 Asian Session High / Low
Tracks the high and low formed during a fully customizable session window
(default 05:30–11:30, Asia/Kolkata). Once the session ends, the level freezes
and remains visible as a fixed reference for the rest of the day.
🔹 Pivot-Based Support / Resistance
Detects swing highs/lows using an adjustable pivot strength and plots the
most recent levels (configurable count) as horizontal support/resistance
lines.
🔹 BOS / CHoCH (Market Structure)
Automatically identifies:
- BOS (Break of Structure) — trend continuation
- CHoCH (Change of Character) — potential trend reversal
Drawn as dashed lines with labels the moment price closes beyond the last
swing high/low.
🔹 Trend Direction Label
A live label in the corner of the chart shows the current structural bias:
▲ BULLISH / ▼ BEARISH / NEUTRAL.
🔹 Built-in Alerts
Four ready-to-use alert conditions appear directly in TradingView's native
"Create Alert" dropdown:
- PDH Cross
- PDL Cross
- Asian High Cross
- Asian Low Cross
Each one fires only on a confirmed candle CLOSE beyond the level (not a
simple wick touch), which helps cut down on false/noise alerts.
█ CUSTOMIZATION
Every component can be shown/hidden and recolored independently:
- PDH / PDL
- Asian Session High / Low (with custom session + timezone)
- Support / Resistance (pivot strength + max levels shown)
- BOS / CHoCH (independent toggles, colors, label size)
- Trend label on/off
- Label distance from the last bar (so labels don't overlap price action)
█ HOW TO USE
1. Add the indicator to your chart.
2. Open Settings and enable/disable whichever levels you want to track.
3. Right-click the chart → Add Alert → select this indicator as the
Condition → choose one of the 4 built-in cross alerts.
This script is intended as a clean, configurable reference-level toolkit
for intraday traders working with daily/session-based key levels and basic
market structure (BOS/CHoCH), without needing to combine multiple
separate indicators.
⚠️ DISCLAIMER
This script is for educational and informational purposes only. It does
not constitute financial, investment, or trading advice, and should not
be relied upon for making trading or investment decisions. Past
performance of any strategy or level is not indicative of future results.
Trading and investing in financial markets involves substantial risk of
loss and is not suitable for every investor. You are solely responsible
for any trades or investment decisions you make. Always do your own
research and consult a licensed financial advisor before making any
trading decisions.
The author accepts no liability whatsoever for any direct or indirect
loss arising from the use of this script. Indicador
Market Structure BOS, CHoCH, HH HL LH LL & Trend Health [LunqFX]Market structure is the skeleton of every trend: a series of higher highs and higher lows, or lower highs and lower lows, until a break says the trend has changed. This indicator maps that skeleton automatically — labelling every swing as HH, HL, LH or LL, drawing each Break of Structure (BOS) and Change of Character (CHoCH) — and adds one thing no other structure tool has: it tells you the trend is failing BEFORE the structure actually breaks.
❶ THE STRUCTURE MAP
▸ SWING LABELS — every confirmed swing point is labelled HH (higher high), HL (higher low), LH (lower high) or LL (lower low). The sequence of those four labels IS the trend, and having it on the chart removes the guesswork from reading price action.
▸ BOS — Break of Structure. Price closes through the last swing level in the direction of the trend: the trend is continuing. Drawn as a dashed line from the broken level with a BOS label.
▸ CHoCH — Change of Character. Price closes through the last swing level against the trend: the trend has flipped. Drawn as a solid, highlighted line — this is the reversal signal smart-money traders wait for.
▸ STRUCTURE CANDLES — the candles themselves are coloured by the structural trend, not by whether each bar closed up or down. Green means the market structure is bullish, violet means bearish, so the regime is obvious at a single glance. Their brightness fades as Trend Health falls.
❷ TREND HEALTH 0–100 — THE EARLY WARNING
Every other structure tool tells you a trend has ended after CHoCH prints. By then the move is already gone. Trend Health measures the two things that decay before every structure break:
▸ EXPANSION — in a healthy trend each new extreme clears the previous one by at least as much as the last leg did. When new highs barely exceed the old ones, the trend is running out of fuel.
▸ RETRACEMENT — in a healthy trend pullbacks stay shallow. When each pullback eats deeper into the previous leg, control is shifting to the other side.
Both are measured on the live leg, normalised by ATR so the score behaves the same on any symbol and timeframe, and blended into a single 0–100 reading. When it drops below your threshold the dashboard flags WEAKENING — while the trend is still technically intact. That is the warning CHoCH cannot give you, because CHoCH is confirmation, not anticipation.
❸ THE STRUCTURE TAPE
Instead of a table of numbers, the dashboard shows a timeline of the last five structure events, oldest to newest: BOS ▲ · BOS ▲ · CHoCH ▼ · BOS ▼. Reading the sequence tells you instantly whether the market is trending cleanly (a run of BOS in one direction) or chopping (CHoCH flipping back and forth) — context you cannot get from a single label on the chart.
❹ HOW TO TRADE IT
1 — Establish the bias from MARKET STRUCTURE in the panel. Bullish structure = look for longs, bearish = look for shorts. Do not fight it.
2 — Use BOS as continuation. A BOS in the direction of your bias confirms the trend is intact; the broken level often becomes support or resistance on the retest.
3 — Use CHoCH as the reversal trigger. A CHoCH against the prevailing trend is the earliest confirmed signal that structure has flipped. Wait for it before trading a reversal.
4 — Use TREND HEALTH for timing and risk. Health above 65 with a run of BOS on the tape = a clean trend, hold your position and trail. Health falling into WEAKENING = tighten stops, take partials, and stop adding — the structure is decaying and a CHoCH becomes more likely.
5 — Read the tape for market state. Several BOS in a row = trending market, trade continuations. Alternating CHoCH = choppy market, stand aside or trade the range instead.
❺ HOW IT WORKS
Swing points come from confirmed pivots, so a swing only exists once the bars on both sides of it have closed. The most recent swing high and swing low become the active structure levels. When a bar CLOSES beyond one of them (a wick-based mode is available), the break is registered: in the direction of the current trend it is a BOS, against it a CHoCH, and the trend state flips. Trend Health compares the size of the current expansion leg with the previous one in ATR units, and the depth of the latest pullback against the leg it retraced, then blends them 60/40 into the 0–100 score. Immediately after a CHoCH there is no second leg to compare yet, so the panel honestly reports NEW TREND instead of a misleading health reading.
Works on every symbol and timeframe — forex, gold, indices, crypto and stocks — because every threshold is either structural or ATR-normalised, with nothing to configure per market.
SETTINGS — swing length (how major a swing must be), break on close or wick, the health threshold that flags weakening, swing labels and BOS/CHoCH lines on/off, number of events kept, structure candles on/off, and dashboard position.
ALERTS — BOS up, BOS down, CHoCH up, CHoCH down, and Structure Weakening (the early warning).
NON-REPAINTING — swings are built from confirmed pivots and every break is validated on bar close. A label or line that has printed never moves or disappears.
Every component here describes the same object — the market's structure — at a different resolution: the swings build it, BOS and CHoCH break it, Trend Health measures its condition, and the tape is its history. That is why they belong in one tool rather than five.
This indicator is an educational market-analysis tool, not financial advice. Trend Health describes the current structure's condition and does not predict future prices. Always confirm with your own analysis and manage your risk.
Pre-publish checklist Indicador
1H OB + Strong Levels + 9/15 EMA + Daily High/Low BY MR_BASIT The 1H SMC: Unmitigated OB + FVG + Daily Liquidity + 9/15 EMA indicator is a comprehensive, institutional-grade technical analysis toolkit designed for Smart Money Concepts (SMC) and Price Action traders.
Unlike standard indicators that create chaotic, cluttered charts with obsolete lines and filled boxes, this indicator utilizes a dynamic auto-cleanup engine. It continuously deletes mitigated zones and historical structure points, ensuring that only high-probability, active (unmitigated) levels are displayed on your chart in real-time.
Core Features & Technical Logic
Unmitigated Order Blocks with FVG Confluence
Higher Timeframe Context: Order Blocks are calculated using 1-Hour (1H) candle data for strong institutional context, even when applied to lower execution timeframes (1m, 5m, 15m).
Strict Imbalance Filter: An Order Block box is only created if accompanied by a Fair Value Gap (FVG). This drastically reduces false setups and highlights genuine institutional footprint zones.
Auto-Mitigation Deletion: As soon as price enters and mitigates an active Order Block, the box is automatically deleted via Pine Script array management, leaving your chart completely clear.
Single Active Strong High / Strong Low Tracking
Institutional Structural Points:
A Strong Low is validated when price creates a Bullish Break of Structure (BOS).
A Strong High is validated when price creates a Bearish Break of Structure (BOS).
Infinite Rightward Extension: Strong levels are plotted as clean 1x solid lines extending infinitely to the right, giving you a crisp, dynamic target or stop level in live market conditions.
Single Instance Logic: Only the current, active Strong level is drawn—older levels are automatically cleared.
Break of Structure (BOS) Identification
Precise Breakout Lines: Automatically identifies when price crosses above a swing high or below a swing low using 1x thin dashed lines.
Visual Clarity: Includes centered text labels (BOS) in Blue (Bullish) or Red (Bearish) with optimal font formatting for fast recognition.
Previous Day High & Low Liquidity (PDH / PDL)
Institutional Liquidity Pools: Automatically plots Previous Day High (BSL - Buy-Side Liquidity) and Previous Day Low (SSL - Sell-Side Liquidity).
1x Thin Dotted Styling: Projected to the right edge of the chart to identify key liquidity sweep targets for daily sessions.
Dynamic Dual EMAs (9 & 15 EMA)
Short-Term Trend & Momentum: Features built-in 9 EMA (Blue) and 15 EMA (Orange) plotted as 1x thin lines.
Entry Confluence: Helps traders quickly identify momentum alignment and dynamic support/resistance alongside SMC zones.
How to Trade with This Indicator
Bullish Setup (Buy Entry)
Confirm overall trend is bullish using the 9 EMA above 15 EMA.
Wait for price to sweep Daily Low (SSL) or create a Bullish BOS.
Identify the Unmitigated Bullish Order Block (Purple Zone) formed above the Strong Low.
Enter on a retest/tap into the Bullish Order Block zone, placing Stop Loss just below the Strong Low.
Bearish Setup (Sell Entry)
Confirm overall trend is bearish using the 9 EMA below 15 EMA.
Wait for price to sweep Daily High (BSL) or create a Bearish BOS.
Identify the Unmitigated Bearish Order Block (Orange Zone) formed below the Strong High.
Enter on a retest/tap into the Bearish Order Block zone, placing Stop Loss just above the Strong High.
Indicator Settings Guide
Timeframe: Set HTF context for OBs and Pivots (Default: 60 / 1H).
Swing Lookback: Controls pivot detection sensitivity (Default: 5).
EMA 1 Length / EMA 2 Length: Customize EMA period lengths (Default: 9 and 15).
Colors: Customize opacity, border colors, and background fills for Bullish and Bearish Order Blocks.
Risk Disclaimer
This script is designed purely for technical analysis and educational purposes. Trading financial markets involves significant risk. Always combine this tool with robust risk management, proper position sizing, and additional trade confirmations Indicador
Smart Structure Mapper [StrixEDGE]Overview
AetherZone is a market structure analysis toolkit that maps the internal architecture of price action in real time. It identifies swing points, tracks structural shifts (BOS & CHoCH), detects order blocks (supply and demand zones), and highlights fair value gaps — consolidating the core framework of institutional price analysis into a single, self-managing overlay.
What This Indicator Does
AetherZone operates through five interconnected analytical layers:
Swing Detection Engine
Identifies confirmed pivot highs and pivot lows using a configurable lookback window. Each swing point is labeled directly on the chart as "Swing High" or "Swing Low" in clean, neutral text. Pivots are confirmed after the required bars have closed on both sides, ensuring the indicator does not repaint or revise historical swing points. Each swing is classified relative to its predecessor as a Higher High (HH), Lower High (LH), Higher Low (HL), or Lower Low (LL).
Market Structure Tracker
Continuously evaluates the relationship between consecutive swing highs and swing lows to determine the prevailing market structure:
- Bullish Structure — Higher Highs + Higher Lows (HH/HL)
- Bearish Structure — Lower Highs + Lower Lows (LH/LL)
- Ranging — Mixed signals or insufficient structural data
BOS & CHoCH Detection
AetherZone uses a flag-based detection system to identify structural breaks. When a new swing point is confirmed, its level becomes active. The first bar where price closes beyond that level triggers the event:
- BOS ↑ / BOS ↓ (Break of Structure) — Price breaks a swing level in the direction of the prevailing trend, confirming continuation. Labeled with directional arrows on the chart.
- CHoCH ↑ / CHoCH ↓ (Change of Character) — Price breaks a swing level against the prevailing trend, signaling a potential reversal. Displayed with a more prominent label and color to draw attention to the structural shift.
A dashed level line is drawn at the broken swing point for visual reference.
Order Block Detection
AetherZone identifies potential institutional interest zones through two configurable modes:
"All Swings" mode (default): An Order Block is created at every confirmed swing point, providing comprehensive zone coverage. On each confirmed pivot low, the last bearish candle near that swing becomes a Demand zone. On each confirmed pivot high, the last bullish candle near that swing becomes a Supply zone.
Bullish OB
"BOS/CHoCH Only" mode: Order Blocks are created only when a structural break occurs, providing fewer but potentially higher-conviction zones.
Fair Value Gap (FVG) Detection
- BULL FVG — Current candle's low is above the candle-two-bars-ago's high (gap up)
- BEAR FVG — Current candle's high is below the candle-two-bars-ago's low (gap down)
FVGs are filtered by a minimum size threshold (percentage of ATR) to eliminate insignificant gaps, and are automatically removed when filled by subsequent price action or when they exceed their maximum age.
Inputs & Customization
Structure
- Show BOS / Show CHoCH — Independent visibility toggles for each structural event type.
Order Blocks
- OB Source — "All Swings" (OB at every pivot, more zones) or "BOS/CHoCH Only" (fewer, higher-conviction zones). Default: All Swings.
- Max OB Age — Bars before an OB is removed due to aging. Default: 120.
- Mitigation Grace — Bars after creation during which an OB cannot be mitigated. Default: 10.
- Max Active OBs — Limits simultaneously displayed OBs per side. Default: 6.
Fair Value Gaps
- Max FVG Age — Bars before an unfilled FVG is removed. Default: 50.
- Min FVG Size (% of ATR) — Minimum gap size to qualify. Default: 10%.
- Max Active FVGs — Limits simultaneously displayed FVGs per side. Default: 5. Indicador
TREND RIBBONtrend filter ribbon
trend filter ribbon is a market structure and trend filtering tool designed to help traders read the active direction of price with a clean ema ribbon, external structure logic, internal entry markers, htf bias filtering, and a compact live dashboard.
the tool is built to answer one simple question:
is the market bullish, bearish, or neutral?
it does not try to predict every candle. it filters the chart so the trader can avoid low-quality counter-trend decisions and focus on cleaner directional setups.
what the indicator does
the indicator combines several elements:
ema ribbon:
a multi-layer ema ribbon shows the current trend body. when the ribbon expands, the trend is stronger. when it compresses, the market is weaker or flatter.
external structure:
major swing highs and swing lows define the main market structure. when price breaks a major level, the script detects bos or choch depending on the current structure state.
internal structure:
smaller swing breaks are used as early entry markers, but only when they agree with the active master trend.
htf veto:
a higher timeframe ema filter can block counter-trend conditions. when the lower timeframe disagrees with the selected htf direction, the master trend can be held as neutral.
live structure levels:
the most important active high and low levels are drawn on the chart so the trader can see where the next structural decision may happen.
dashboard:
a compact institutional-style panel displays external trend, htf bias, master state, ribbon spread, active levels, and early long or short validity.
how to read the ribbon
bullish ribbon:
when the ribbon is bullish, the tool is showing that the active structure and trend conditions favor long setups.
bearish ribbon:
when the ribbon is bearish, the tool is showing that the active structure and trend conditions favor short setups.
neutral ribbon:
when the ribbon is neutral, the market is not clean enough or the htf filter is blocking the active direction. beginners should usually avoid trading during neutral conditions.
ribbon spread:
the ribbon spread measures the distance between the fastest and slowest ribbon ema, normalized by atr.
flat:
the ribbon is compressed. the market may be ranging or weak.
building:
the ribbon is expanding. trend strength is improving.
strong:
the ribbon is clearly expanded. the current direction has stronger momentum.
bos and choch
bos means break of structure.
a bullish bos appears when price continues higher by breaking a valid structural high during a bullish structure.
a bearish bos appears when price continues lower by breaking a valid structural low during a bearish structure.
choch means change of character.
a bullish choch appears when price breaks structure upward after a bearish phase.
a bearish choch appears when price breaks structure downward after a bullish phase.
for beginners:
bos usually means continuation.
choch usually means possible reversal.
how to use the indicator
step 1: check the master trend
start with the dashboard.
if master is bullish, focus only on long ideas.
if master is bearish, focus only on short ideas.
if master is neutral, wait.
step 2: check the htf bias
the htf line shows whether the selected higher timeframe is bullish or bearish.
when the htf agrees with the master trend, the condition is cleaner.
when the htf disagrees, the tool can hold the master trend in neutral mode.
step 3: check the ribbon spread
flat ribbon:
avoid aggressive entries.
building ribbon:
look for confirmation.
strong ribbon:
trend conditions are more active.
step 4: wait for structure
a bos can confirm continuation.
a choch can show that the previous direction may be changing.
beginners should not enter only because a label appears. the label should be combined with context, trend direction, support and resistance, and risk management.
step 5: use internal entry markers
internal entry markers are early signals that appear only in the direction of the active filtered trend.
a long marker is only valid when the master trend is bullish.
a short marker is only valid when the master trend is bearish.
beginner example
example long setup:
1. master trend is bullish
2. htf bias is bullish
3. ribbon spread is building or strong
4. price breaks structure upward
5. a long entry marker appears
6. trader looks for a logical stop below the recent swing low
7. trader targets the next resistance, previous high, or a fixed risk/reward level
example short setup:
1. master trend is bearish
2. htf bias is bearish
3. ribbon spread is building or strong
4. price breaks structure downward
5. a short entry marker appears
6. trader looks for a logical stop above the recent swing high
7. trader targets the next support, previous low, or a fixed risk/reward level
main inputs
external swing strength:
controls the strength of the major swing structure. higher values create fewer but stronger structure signals. lower values create more responsive signals.
internal swing strength:
controls the smaller internal structure used for early entry markers. lower values are faster. higher values are cleaner but slower.
break confirmation:
choose whether structure breaks are confirmed by close or wick.
close:
more conservative.
wick:
more reactive.
bos pivot strength:
controls the pivot sensitivity used for bos continuation levels.
choch pivot strength:
controls the pivot sensitivity used for choch reversal levels.
htf timeframe:
selects the higher timeframe used for directional filtering.
htf ema length:
controls the ema used for the higher timeframe bias.
base ema length:
sets the first ema in the ribbon.
ema step:
controls the spacing between each ema in the ribbon.
ribbon lines:
turns the ribbon lines on or off.
ribbon fill:
turns the fill between ribbon layers on or off.
core glow:
adds a stronger visual emphasis to the main ribbon line.
external structure labels:
shows or hides bos and choch labels.
internal entry markers:
shows or hides early long and short markers.
live structure levels:
shows or hides the active major structure levels.
background tint:
adds a light background color based on the current master trend.
dashboard:
shows or hides the live panel.
dashboard position:
lets the trader place the panel in any chart position.
alerts
the script includes alerts for:
bullish choch
bearish choch
bullish bos
bearish bos
long entry
short entry
for best results, create alerts after the indicator is added to the chart and select the alert condition that matches your trading plan.
beginner tips
do not trade every signal.
use the indicator as a filter, not as a complete trading system.
avoid trading when the dashboard shows neutral.
avoid trading when the ribbon spread is flat.
look for agreement between master trend and htf bias.
always define stop loss, target, and invalidation before entering.
combine the tool with support and resistance, liquidity levels, volume, session context, or higher timeframe analysis.
important notes
this indicator is designed for market analysis and trend filtering.
it does not guarantee profitable trades.
signals can fail during news, low liquidity, sideways markets, or high volatility conditions.
risk management remains the responsibility of the trader.
the best use of this tool is to filter direction, read structure, and avoid trading against the dominant trend.
Indicador
ApexSignalPro SMC [ForexCracked]🔵 OVERVIEW
ApexSignalPro SMC is a confluence-scored Smart Money Concepts indicator that fires a signal only when multiple institutional footprints align on the same bar. Every signal carries a live score from 0 to 5 showing how many structural conditions agree — market structure, order blocks, fair value gaps, premium/discount location, and higher-timeframe bias.
Instead of the "every crossover is a signal" approach, it uses a strict confluence gate, a range-regime filter, and forced signal alternation — far fewer signals, much higher conviction. A live dashboard shows the score, active zones, and the last trade plan at a glance.
🔵 WHY THESE COMPONENTS ARE COMBINED
A break of structure alone, an order-block touch alone, or a single fair value gap all fire often and fail often. They become far more reliable when they occur together and agree with the higher-timeframe trend. Rather than overlaying five separate tools and leaving you to judge them, this script quantifies their agreement into one 0–5 score and only trades when enough align. Three principles guide it:
• Direction comes from market structure (BOS / CHoCH), not from price crossing smoothed averages
• Entries require confluence, never a single condition
• Signals alternate (BUY → SELL → BUY), never stacking the same direction in one leg
🔵 THE FIVE SCORED FACTORS (1 point each)
1️⃣ Market structure (BOS / CHoCH) points in the signal direction
2️⃣ Price is inside an unmitigated order block
3️⃣ Price is inside an unmitigated fair value gap
4️⃣ Correct half of the range — discount for longs, premium for shorts
5️⃣ Higher-timeframe EMA bias agrees
🔵 HOW A SIGNAL FIRES A BUY or SELL prints only when ALL of these are true:
• The confluence score meets your minimum (default 3 of 5)
• A strong-bodied candle closes in that direction
• The ADX regime filter confirms trending, not ranging
• The signal is opposite the previous one (forced alternation) Each signal draws Entry, Stop (beyond the nearest order block + ATR buffer), and Take Profit (configurable R:R), with pip labels.
🔵 HOW IT READS THE MARKET
• Market structure — confirmed swing pivots; a close beyond the last pivot is a BOS, the first break against structure is a CHoCH that flips the state
• Order blocks — the last opposing candle before an impulsive displacement (body > 1.2× ATR); tracked until mitigated or aged out
• Fair value gaps — three-candle imbalances filtered by a minimum ATR size; removed when filled
• Premium / discount — the swing-range midpoint splits discount (below) from premium (above) • Regime — ADX must exceed your minimum, suppressing signals in flat ranges
🔵 HOW TO USE
• Favour score 4–5 signals; treat score 3 with extra confirmation
• Require the dashboard HTF bias to match the signal for trend-aligned entries
• Use retests of unmitigated OBs or FVGs in the trend direction as continuation entries
• Size each trade off the drawn stop distance at a fixed account risk
• Raise Min Confluences to 4 for fewer, stronger signals
🔵 RECOMMENDED SETTINGS
• Swing Length: 5
• Higher Timeframe: 240 (H4) on H1 charts, D on H4 charts
• HTF EMA: 50 · OB Max Age: 20 · FVG Min Size: 0.3× ATR
• ADX Min: 22 · Min Confluences: 3 · SL Buffer: 0.5× ATR · R:R: 2.0
🔵 BEST / WEAKEST CONDITIONS ✅ Trending majors, gold, and indices on H1–H4; London / New York overlap ⚠️ Low-volatility ranges, gapped markets, and sub-5-minute noise
⚠️ DISCLAIMER ApexSignalPro SMC structures signals from Smart Money Concepts. It does not predict future price movement. Results depend on market conditions, settings, and your own execution and risk management. Shared for educational and research purposes; not financial advice. Indicador
Market Structure + CHoCH/MSS/BOS | Xcelerate TradeMarket Structure + CHoCH / MSS / BOS | Xcelerate Trade
A precise market-structure mapper from the Xcelerate Trade team. It auto-detects swing highs / lows, classifies every break of structure as CHoCH (Change of Character), MSS (Market Structure Shift) or BOS (Break of Structure), and labels each pivot as HH / HL / LH / LL. Designed for SMC and price-action traders who want a clean, repaint-aware structural read of the chart.
What you get on the chart
Swing labels: HH (Higher High), HL (Higher Low), LH (Lower High), LL (Lower Low) — auto-placed on every detected pivot.
Break lines: every confirmed break is drawn as a horizontal segment from the swing bar to the breaking bar.
Break tags: each break line gets a label — CHoCH, MSS or BOS — so you can read structure at a glance.
Info table (top-right): current settings (Auto / Manual, TF, L/R, detection method, MSS definition, break validation) and an optional debug panel with trend state, flags, pre-CHoCH levels, last-break details.
Pattern alerts: ready-to-use alertcondition for HH-HL-HH and LL-LH-LL sequences.
Pivot detection — two modes
Williams Fractals (default): classic ta.pivothigh / ta.pivotlow with separate left and right lengths. Configurable in Manual Settings (defaults L = 6, R = 4) or selected automatically per timeframe via Auto Timeframe Settings:
Timeframe L / R
1m
4 / 4
5m
4 / 3
15m
5 / 4
30m+, daily, weekly, monthly
6 / 4
Simple Fractals: SMC-style, symmetric — current bar is a pivot if it's the highest / lowest within simpleFractalPeriod bars on each side. Faster but more frequent than Williams.
You can also force Wait for bar close (default ON) to confirm pivots only on closed bars.
Break validation — 4 modes
Choose how a level is considered "broken":
Close — close beyond the swing level (cleanest, default).
High/Low (wick) — wick beyond the level (most aggressive).
Close beyond buffer (ticks) — close beyond level ± N × mintick.
Close beyond buffer (%) — close beyond level ± X%.
Buffer fields appear conditionally so you can tune the strictness of structure breaks per instrument (forex, indices, crypto, etc.).
Structure classification — CHoCH / MSS / BOS
Trend state is tracked internally (Bullish, Bearish, Neutral). Every confirmed break is then classified:
CHoCH — first break that reverses the trend (bullish CHoCH on a close above the last swing high while bearish; bearish CHoCH on a close below the last swing low while bullish), or the very first break when the trend is still neutral. CHoCH flips the trend and starts a fresh leg.
MSS — first qualifying break in the direction of the new trend after CHoCH, per the MSS definition setting:
First break after CHoCH — any first break in trend direction = MSS, then BOS.
First break >= pre-CHoCH level — MSS only when the broken swing is at or beyond the swing level that existed before the CHoCH. Stricter — protects against premature MSS calls.
HL + >= pre-CHoCH (legacy) — same as above, plus a confirming HL (bull) / LH (bear) is required after CHoCH before MSS can fire.
BOS — every subsequent break in the trend direction after MSS — until the opposite CHoCH occurs and the cycle restarts.
This rule set keeps only one MSS per trend leg, with everything before it being CHoCH and everything after being BOS — exactly how SMC traders read it.
Pre-CHoCH levels (transparent reasoning)
When CHoCH fires, the script captures the swing-high / swing-low that existed before the trend flip (pre_choch_swing_high / pre_choch_swing_low). These are used by the stricter MSS modes and shown in the debug rows of the info table, so you can verify exactly why a break was classified as MSS or BOS.
Last broken swing tracking
For every confirmed break the indicator stores:
lastBreakSwingBarIndex — the bar where the broken swing originally formed (its ID).
lastBreakSwingPrice — the level that was broken.
lastBreakClassification — CHoCH / MSS / BOS.
lastBreakDirection — above swing high / below swing low.
lastBreakDetectBarIndex — the bar where the break passed your validation filter.
These are visible in the debug rows when Show debug rows (table) is on — useful for forensic / journal-style review.
Drawing budget (FIFO)
The indicator caps the number of CHoCH / MSS / BOS line + label pairs at Max CHoCH/MSS/BOS lines + labels (default 400, max ~80% of TradingView's 500 limit). Older drawings are removed first (FIFO), so you never hit the line cap on long histories.
Alerts
Two ready-to-use alert conditions:
HH-HL-HH Alert — fires when an HH-HL-HH pattern completes.
LL-LH-LL Alert — fires when an LL-LH-LL pattern completes.
Use TradingView's alert dialog → choose the alert condition by name. Messages include {{ticker}} and {{interval}} placeholders.
Suggested settings (from the Xcelerate Trade team)
Default for most traders: Auto settings ON, Williams Fractals, Wait for bar close ON, Break validation = Close, MSS definition = First break after CHoCH.
Strict structural read (low noise): Break validation = Close beyond buffer (%) with 0.05–0.10%, MSS definition = First break >= pre-CHoCH level.
Aggressive / fast feedback: Simple Fractals with period 2, Break validation = High/Low (wick), Wait for bar close = OFF.
Forensic review: turn ON Show debug rows (table) to see trend state, CHoCH / MSS flags, pre-CHoCH levels and the last-break summary.
Notes & disclaimers
Williams Fractals confirm with a delay equal to the right-length (R bars). This is intentional — pivots are not repainted after confirmation.
Simple Fractals confirm with a delay equal to simpleFractalPeriod bars.
This is an analytical tool — no automated buy / sell labels. Pair with your own execution rules.
Pine Script v6.
Built and maintained by the Xcelerate Trade team. A complete CHoCH / MSS / BOS market-structure read with HH / HL / LH / LL labels, four break-validation modes, three MSS definition modes, an info / debug table and ready alert conditions. Indicador
Adaptive Market Suite [Jayadev Rana]Overview
Adaptive Market Suite is a four-module analysis toolkit that draws on the price chart. Each module is independent: turn any of them on or off, and each has its own settings group. It shows context, not buy or sell arrows. The four modules are an adaptive trend, volatility bands, market structure with order blocks and fair-value gaps, and an order-flow oscillator. You read the confluence and make your own decisions.
Module 1 - Adaptive Trend and Regime
A moving average whose smoothing adapts to Kaufman's efficiency ratio: the net distance price travelled divided by the total path it took to get there. In clean trends the ratio is high and the average speeds up to hug price; in chop it is low and the average slows and flattens. The line is coloured by its slope, and the info panel reports whether the market is trending or ranging from the same ratio.
Module 2 - Expected-Move Bands
Volatility bands around the adaptive basis. Instead of a fixed multiple of range, the band width scales with where the current Average True Range sits in its own recent history (its percentile), so the bands contract in quiet conditions and expand when volatility rises. A nearer pair and a wider pair mark two envelopes.
Module 3 - Liquidity and Structure
Market structure from confirmed swing pivots, labelled as Break of Structure and Change of Character. Because the pivots are symmetric (confirmed on both sides), they are fixed before they are drawn and do not repaint afterward. On a structure break the tool marks the order block behind the move (the last opposite-direction candle before the push) and it tracks fair-value gaps, which are three-bar imbalances. Each zone follows a mitigation lifecycle: it is extended while it is live and greyed once price trades through it, and only the most recent zones per type are kept so the chart stays readable.
Module 4 - Order-Flow Oscillator
A normalised buy and sell pressure read in the indicator pane. For each bar it combines where price closed within the bar's range with how large that bar's volume was relative to its recent average. Sustained closes near the highs on strong volume push the oscillator positive; the mirror pushes it negative. An absorption marker highlights bars with heavy volume but a small range, where effort is not producing movement.
Info panel
An optional compact table summarises the current trend direction, the regime read, the volatility percentile, and the current order-flow side. It is context only.
Inputs
Inputs are grouped per module: General (ATR length); Module 1 (efficiency length, fast and slow smoothing, regime threshold, colours); Module 2 (volatility lookback, base and extra width, colour); Module 3 (swing length, order-block lookback, max zones per type, toggles for structure, order blocks and fair-value gaps, colours); Module 4 (pressure smoothing, absorption threshold, colours); plus an info-panel toggle. Every module has a single enable switch.
Alerts
Bullish and bearish structure break, and the order-flow oscillator crossing above or below zero.
How to use it
Treat it as a confluence map rather than a signal. For example, price reaching an order block near the lower band, with the order-flow oscillator turning up while the adaptive trend is still rising, is a stronger context than any one of those alone. Turn off the modules you do not need: if you only trade structure, disable the other three groups for a clean map. It is intended for liquid instruments and works across timeframes; the demonstration chart is Gold on the 1-hour timeframe.
Limitations
The structure module confirms swings with bars on both sides, so its labels and order blocks appear a fixed number of bars after the pivot forms. That delay is the trade-off that keeps them from repainting. The bands, the oscillator and the info panel read the current bar and update as it forms, like any live calculation. This is an analysis tool, not a strategy: it places no orders, makes no performance claim, and there is no win rate because it does not promise trades.
Disclaimer
For education and research only. This is not financial advice, and past chart behaviour does not predict future results. Test any approach yourself and manage your own risk. Indicador
SMC Structures and FVG [Produced by Wanfeng]中文简介
SMC 结构综合指标 | FVG 公允价值缺口 + BOS/CHoCH 结构突破 + 趋势防守位 + 区间比例线
指标核心功能
FVG 公允价值缺口
自动识别传统 3 根 K 线标准供需缺口，区分看涨 / 看跌缺口；价格触碰缺口后自动变灰淡化，支持一键收缩被触碰区间，可自定义显示历史缺口数量；不适配跳空大缺口行情。
SMC 结构识别（BOS/CHoCH）
内置回溯周期算法自动判定市场结构：顺势突破 BOS、逆势转换 CHoCH；支持自定义线条颜色、线型、粗细，可限制图表留存历史突破标记数量。
假破待确认虚线
价格试探结构高低但未收盘突破时，自动绘制待确认虚线；区分普通顺势假破、防守位假破两种样式，直观分辨有效突破与诱多 / 诱空假破。
动态趋势防守位
跟随当前市场结构实时切换防守基准：上涨趋势以阶段低点为防守、下跌趋势以阶段高点为防守；出现防守位假破时自动切换至假破极值作为临时防守，加粗实线标注并附带文字标签。
区间比例分割线
基于当前完整结构区间自动计算自定义百分比分割线（默认 50% 中位线），同步适配假破后的区间重构；可显示百分比数值标签，辅助找订单流关键支撑阻力。
参数分组说明
公允价值缺口：控制 FVG 显示、配色、触碰收缩、历史数量
结构突破：结构回溯周期、BOS/CHoCH 线条、当前完整结构轮廓线、假破待确认线
防守位：防守实线配色粗细、防守位假破虚线开关与样式
结构比例线：自定义分割百分比、比例线样式、数值标签开关
使用提示
结构回溯 K 线参数为算法基准，不建议随意修改，修改会破坏防守位判定逻辑；
FVG 仅识别标准 3K 缺口，指数、外汇大幅跳空行情下缺口识别会失真；
突破触发自动警报，BOS 代表顺势延续、CHoCH 代表趋势反转信号；
所有线条、色块透明度、线型、线宽均可自由自定义适配个人图表风格。
English Introduction
SMC Market Structure All-in-One Toolkit | FVG + BOS & CHoCH Breakout + Dynamic Defense Level + Ratio Split Line
Core Features
Fair Value Gap (FVG)
Detect standard 3-bar institutional liquidity gaps (bullish & bearish). FVG boxes turn gray once mitigated, with optional shrink function for touched zones. Adjustable max historical FVG count. Not recommended for large gap/jump markets.
SMC Structure Detection (BOS / CHoCH)
Built-in lookback algorithm to identify institutional market structure: BOS (Break of Structure, trend continuation) & CHoCH (Change of Character, trend reversal). Fully customizable line color, style, width, and limited historical breakout markers to avoid chart clutter.
Pending Fake Breakout Dashed Line
Draw temporary pending lines when price tests swing high/low without close breakout. Separate styles for regular trend fakeouts and defense level fakeouts, easily distinguish valid breaks vs liquidity hunts.
Dynamic Trend Defense Level
Auto-switch defense baseline based on current market bias: swing low for uptrend, swing high for downtrend. Temporarily shift defense level to fakeout extreme when liquidity hunt occurs, with thick solid line and text label.
Range Ratio Split Line
Auto calculate user-defined percentage split level (default 50% midpoint) over active market range, compatible with post-fakeout restructured ranges. Optional percentage value label for key order flow support/resistance zones.
Input Groups
Fair Value Gap: Toggle FVG display, color palette, mitigate shrink, max historical boxes
Market Structure: Structure lookback period, BOS/CHoCH line settings, full swing structure outline, pending fake breakout lines
Defense Level: Solid defense line config, toggle & style for defense fakeout dashed lines
Range Ratio Line: Custom split percentage, ratio line appearance, value label switch
Important Notes
Structure lookback bar count is core algorithm parameter, DO NOT modify arbitrarily; wrong value breaks defense level calculation.
This FVG logic only works for standard 3-bar gaps; performance degrades on assets with massive overnight jumps/gaps.
Built-in alert triggers on confirmed breakouts: BOS = trend continuation signal, CHoCH = trend reversal signal.
Full customization of all line width, color transparency, dash/dot/solid styles to match your chart layout preference. Indicador
Indicador
Market Structure Mechanics - MSSThis script is an automated structural mapping tool designed to read price action through the strict lens of the ICT (Inner Circle Trader) algorithmic framework. It doesn't just mark every high and low; it intelligently categorizes how price interacts with structural levels to tell you whether the trend is continuing, reversing, or manipulating.
Here is a breakdown of how the script interprets market mechanics:
1. Trend Tracking & Pivot Identification
The script actively tracks the most recent swing high (sh) and swing low (sl) to determine the current trend (bullish or bearish). It uses a customizable pivot length (default 5 bars) to identify these structural turning points.
2. Break of Structure (BOS)
A BOS signals that the current trend is continuing.
If the trend is Bullish and a candle closes decisively above the active Swing High, the script draws a solid blue line and labels it BOS.
If the trend is Bearish and a candle closes decisively below the active Swing Low, it draws a solid red line labeled BOS.
3. Market Structure Shift (MSS) with Displacement
An MSS is a high-probability signal that the overall trend has reversed. However, the script is designed to filter out fake reversals by enforcing the Displacement Rule.
If the trend is Bullish, but price suddenly closes below the active Swing Low, the algorithm checks the recent down-move to see if a Bearish Fair Value Gap (FVG) was formed.
If an FVG is present, it means the move had massive institutional momentum (Displacement). It will draw a thick red line labeled MSS, and the trend will officially shift to bearish.
If it breaks the low but no FVG is found, the script flags it as a low-probability, invalid break (drawn as a dotted gray line).
4. Liquidity Sweeps (Stop Hunts)
This is where the script shines at reading manipulation.
If price pushes past a structural high or low to trigger retail stop losses, but the candle ultimately fails to close beyond the level (leaving a wick), the script immediately recognizes this as a stop hunt.
It will draw a dashed orange line and label it Sweep.
The script also features a built-in "Smart Label Merger", meaning if a level gets Swept and then Broken on the exact same candle, the labels will neatly combine (e.g., "Sweep, BOS") instead of creating a messy, overlapping clump of text on your chart. Indicador
SMC Lite Pro [BOS + CHoCH + OB + FVGOverview
SMC Lite Pro [BOS + CHoCH + OB + FVG is a Smart Money Concepts (SMC) based trading indicator designed to help traders identify market structure shifts, liquidity movements, institutional order flow, and high-probability reaction zones directly on the chart.
This all-in-one tool combines Break of Structure (BOS), Change of Character (CHoCH), Order Blocks, Fair Value Gaps (FVG), and Liquidity Sweeps into a single clean and powerful trading system. It is built for traders who follow price action and institutional-style market behavior across Forex, Crypto, Indices, and Commodities.
Key Features
Market Structure Engine
* Swing Highs & Swing Lows detection
* Higher High / Lower Low structure mapping
* Real-time trend identification
🚀 BOS & CHoCH Detection
* Break of Structure (Bullish & Bearish)
* Change of Character (Trend reversal signals)
* Clean visual labels for structure shifts
🏦 Order Blocks (SMC Zones)
* Bullish Order Blocks (demand zones)
* Bearish Order Blocks (supply zones)
* Institutional entry zones based on displacement moves
⚡ Fair Value Gaps (FVG)
* Imbalance detection between candles
* Bullish and Bearish FVG zones
* Potential price retracement areas
💧 Liquidity Concepts
* Equal Highs / Equal Lows detection
* Liquidity sweep identification
* Smart money stop hunt zones
📈 Best Market Conditions
* Trending markets
* High volatility sessions (London & New York)
* Strong breakout environments
⏱ Recommended Timeframes
* 1M – 5M → Scalping (fast entries)
* 15M – 1H → Intraday trading (BEST performance)
* 4H – Daily → Swing trading (high accuracy setups)
🎯 How to Use
* Wait for BOS or CHoCH for directional bias
* Identify Order Blocks after structure shift
* Use FVG zones for pullback entries
* Confirm liquidity sweep before entry
* Trade in direction of market structure
⚠️ Disclaimer
This indicator is based on Smart Money Concepts and historical price action analysis. It does not guarantee profits. Trading involves risk, and users should apply proper risk management and confirmation before entering trades. Indicador
Fractal Structure Indicator BOS CHoCH TGFXFractal Market Structure — BOS / CHoCH
OVERVIEW
This tool maps market structure automatically using fractal pivots. It detects swing and internal structure, labels each break as BOS (continuation) or CHoCH (change of character / reversal), tracks the current fractal high and low (FH / FL), highlights the premium and discount zones of the active range, and summarises higher-timeframe structure in a table.
THE CONCEPTS
- Fractal pivots: highs and lows are detected as Williams-style pivots (a high or low with N bars on each side). Two layers are available — swing structure (larger pivots) and internal structure (smaller pivots inside the swings).
- BOS (Break of Structure): price closes beyond the prior structural point in the direction of the trend — a continuation event.

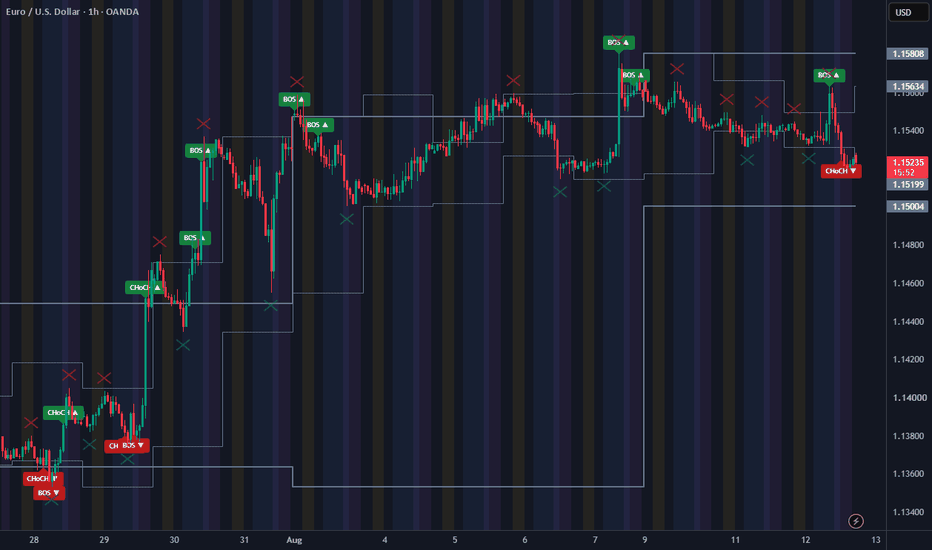

- CHoCH (Change of Character): the first break against the prevailing structure — an early sign of a potential reversal.
- Current FH / FL: the most recent fractal high and low, where liquidity tends to rest.
- Premium / Discount: the active range is split at its 50% equilibrium. Above it is premium (relatively expensive); below it is discount (relatively cheap).
- Multi-timeframe table: shows the structural bias and the zone (premium / discount) of higher timeframes at a glance.
NON-REPAINTING
A fractal is only confirmed once N bars have closed on each side, so a pivot is fixed after confirmation and does not repaint. Structure breaks (BOS / CHoCH) are evaluated on bar close.
SETTINGS
- Swing fractal length and internal fractal length.
- Show / hide internal structure.
- Show current FH / FL lines and labels.
- Show BOS / CHoCH labels.
- Show premium / discount zones.
- Colors, line extension, and the multi-timeframe table (timeframes and position).
HOW TO READ IT
- Green = bullish structure, red = bearish structure.
- BOS suggests trend continuation; CHoCH warns of a possible reversal.
- Price reaching discount within a bullish bias, or premium within a bearish bias, is the classic context many traders use to look for entries in the direction of structure.
NOTES
This script is an original implementation of standard, public price-action concepts (fractal pivots, market structure, BOS / CHoCH, premium / discount, equilibrium). It is a visualization and context tool — it does not generate buy/sell signals and makes no claim about future performance. Best used together with your own analysis and risk management. Indicador
RIFTS Tap & Break Sniper [NICK789]
RIFTS Tap & Break Sniper
The RIFTS Tap & Break Sniper indicator is built around one core price-action idea:
Price creates or leaves behind a reaction zone, later returns to tap or reject from that zone, and then confirms direction by printing a BOS or CHoCH.
RIFTS stands for:
**R** — Reaction Zones
**I** — Imbalance Gaps
**F** — Flip / Structure Confirmation
**T** — Tap & Break Logic
**S** — Sniper Scoring
Together, these describe the full process used by the script: price creates or leaves behind a zone, returns to tap or reject from it, then confirms direction through BOS or CHoCH before the setup is scored and plotted as a Sniper or Sniper+ signal.
The script is designed to help traders identify tap-and-break structures where a zone reaction and a market-structure break occur together. Instead of showing zones by themselves or structure breaks by themselves, RIFTS connects both steps into one workflow:
1. Price creates a Reaction Block or Imbalance Gap.
2. Price returns to tap the zone.
3. Price rejects from the zone.
4. Price confirms direction with BOS or CHoCH.
5. The script scores the setup and plots a Sniper or Sniper+ signal.
🔶 USAGE
RIFTS identifies two main zone types:
Reaction Blocks
Imbalance Gaps
A setup begins when price creates one of these zones. The script then watches for price to return to the zone and either tap or reject from it.
A bullish setup develops when price interacts with a bullish zone and then confirms upward movement through a bullish structure break.
A bearish setup develops when price interacts with a bearish zone and then confirms downward movement through a bearish structure break.
The signal is not based on the zone alone. The main purpose is to find moments where zone interaction and structure confirmation align.
🔹 Reaction Blocks
Reaction Blocks are candle-based zones created after price displaces away from the previous candle.
A bullish Reaction Block forms when a bullish candle closes above the previous candle’s high while the previous candle was bearish.
A bearish Reaction Block forms when a bearish candle closes below the previous candle’s low while the previous candle was bullish.
The script marks the previous candle range as the reaction area. This area becomes important if price later returns to it and reacts.
The Zone Candle Body % setting controls how strong the displacement candle must be before a Reaction Block is created. Higher values require stronger candle bodies and reduce weaker zones.
🔹 Imbalance Gaps
Imbalance Gaps are created when price moves quickly and leaves an untraded gap between the current candle and the candle two bars back.
A bullish Imbalance Gap forms when the current low is above the high from two candles ago.
A bearish Imbalance Gap forms when the current high is below the low from two candles ago.
These gaps represent fast price movement. If price later returns to the gap, the script monitors whether price reacts from that area and then breaks structure.
🔹 Tap and Reaction Logic
After a Reaction Block or Imbalance Gap is created, the script tracks whether price comes back into the zone.
A zone is considered tapped when price trades back inside the zone.
A bullish reaction occurs when price taps a bullish zone and then closes upward out of that zone.
A bearish reaction occurs when price taps a bearish zone and then closes downward out of that zone.
The reaction candle must pass the selected quality filters:
Reject Body %
Reject Range ATR
These filters help avoid weak touches where price enters a zone but does not show enough rejection strength.
🔹 BOS and CHoCH Confirmation
The script tracks swing highs and swing lows using the Structure Swing Length setting.
When price closes above the last confirmed swing high, the script detects a bullish structure break.
When price closes below the last confirmed swing low, the script detects a bearish structure break.
The structure break is classified as either BOS or CHoCH.
BOS means Break of Structure. It represents continuation in the current structure direction.
CHoCH means Change of Character. It represents a break against the previous market bias and may suggest a possible directional shift.
CHoCH and BOS lines are drawn on the chart so users can see exactly which structure level was broken.
🔶 SIGNAL MODES
The Sniper Confirmation setting controls how strict the setup must be before a signal appears.
Reaction Only
A signal can appear when price reacts from a valid zone. This is the fastest mode because it does not require a BOS or CHoCH confirmation.
Tap + Structure
A signal requires price to tap a valid zone and then break structure in the signal direction.
Reaction + Structure
A signal requires both a valid zone reaction and a BOS or CHoCH confirmation. This mode is designed for traders who want zone rejection and structure confirmation together.
🔹 Structure Trigger Type
The Structure Trigger Type setting controls which structure events can trigger signals.
Both
Allows both BOS and CHoCH.
CHoCH Only
Only allows change-of-character signals.
BOS Only
Only allows break-of-structure signals.
This lets traders focus on reversal-style setups, continuation-style setups, or both.
🔶 SNIPER SCORE
Each setup receives a score based on the conditions that are present.
The score can include:
Zone tap or zone reaction
BOS or CHoCH confirmation
Fresh reaction timing
Optional volume confirmation
Optional EMA trend confirmation
A Sniper signal appears when the setup reaches the minimum score threshold.
A Sniper+ signal appears when the setup reaches the higher Sniper+ threshold.
The score is a confluence model. It does not predict guaranteed profit. It simply shows how many of the script’s conditions are aligned.
🔹 Volume Filter
When enabled, the Volume Filter requires current volume to be above a selected moving average multiplier.
Volume MA Length controls the volume average.
Volume Multiplier controls how much stronger current volume must be compared with the average.
This filter can help reduce signals during weaker volume conditions.
🔹 EMA Trend Filter
When enabled, the EMA Trend Filter checks whether price is on the correct side of the selected EMA.
Bullish signals require price to be above the EMA.
Bearish signals require price to be below the EMA.
This filter is optional and can be used when traders want signals to align with broader trend direction.
🔶 TRADE PLAN GUIDE
When a Sniper or Sniper+ signal appears, the script can draw a simple trade plan guide.
Entry is based on the signal candle close.
Stop loss is placed beyond the reaction zone with an optional ATR buffer.
TP1, TP2, and TP3 are calculated using the selected R multiples.
The trade plan is only a visual guide. It does not place trades, manage trades, or act as a strategy tester.
🔶 VISUAL DISPLAY
The script can display:
Bullish and bearish Reaction Blocks
Bullish and bearish Imbalance Gaps
CHoCH and BOS structure lines
Sniper and Sniper+ markers
Latest Entry / SL / TP guide
Master alert and separate bull/bear alert conditions
Used zones and overlapping same-side zones are visually cleaned up to keep the chart easier to read.
🔶 SETTINGS
Core Zones
Show Zones
Toggles the display of Reaction Blocks and Imbalance Gaps.
Reaction Blocks
Enables or disables Reaction Block detection.
Imbalance Gaps
Enables or disables Imbalance Gap detection.
Hide Broken Zones
Removes invalidated zones from the chart.
Max Stored Zones
Controls how many zones are stored and tracked.
Zone Candle Body %
Sets the minimum candle body percentage required to create a zone.
Sniper Logic
Sniper Confirmation
Chooses Reaction Only, Tap + Structure, or Reaction + Structure.
Structure Swing Length
Controls the swing pivot length used for BOS and CHoCH detection.
Structure Trigger Type
Chooses whether BOS, CHoCH, or both can trigger signals.
Reaction Valid Bars
Controls how long a zone reaction remains valid for confirmation.
Confirm Signal On Candle Close
When enabled, signals only appear after the candle closes.
Quality Filters
ATR Length
Controls the ATR used for rejection and stop-buffer calculations.
Reject Body %
Sets the minimum body size required for a valid rejection candle.
Reject Range ATR
Sets the minimum candle range relative to ATR for rejection quality.
Require Break Displacement
Requires BOS/CHoCH candles to pass body and ATR strength filters.
Break Body %
Sets the minimum body size required for a valid structure break.
Break Range ATR
Sets the minimum candle range relative to ATR for a valid structure break.
Score Filters
Use Volume Filter
Requires volume confirmation before allowing signals.
Volume MA Length
Controls the moving average used for volume comparison.
Volume Multiplier
Controls how strong current volume must be compared with its average.
Use EMA Trend Filter
Requires signals to align with the EMA trend filter.
EMA Trend Length
Controls the EMA used for trend filtering.
Show Sniper+ Only
Hides normal Sniper signals and only shows Sniper+ signals.
Min Sniper Score
Minimum score required for a normal Sniper signal.
Sniper+ Score
Minimum score required for a Sniper+ signal.
Visuals
Show CHoCH/BOS Lines
Toggles structure lines on the chart.
Max Structure Lines
Controls how many structure lines remain visible.
Show Latest Entry / SL / TP
Toggles the trade plan guide.
RR Lines Bars Ahead
Controls how far the trade plan guide extends to the right.
TP1 R, TP2 R, TP3 R
Controls the risk-multiple targets.
SL ATR Buffer
Adds an ATR-based buffer beyond the reaction zone for the stop guide.
Alerts
The script includes alert conditions for:
Master Sniper signal
Bull Sniper
Bear Sniper
Bull Sniper+
Bear Sniper+
A dynamic master alert option is also available for traders who want alert messages that include symbol, timeframe, close price, and score.
🔶 HOW TO READ THE SIGNALS
A bullish Sniper signal means price has interacted with a bullish zone and passed the selected confirmation rules.
A bearish Sniper signal means price has interacted with a bearish zone and passed the selected confirmation rules.
A Sniper+ signal means the setup reached the higher score threshold.
BOS labels can help identify continuation-style structure breaks.
CHoCH labels can help identify possible shift or reversal-style structure breaks.
The Entry / SL / TP guide is only for planning and should be adjusted to each trader’s own risk management.
🔶 IMPORTANT NOTES
This script is a confluence and visualization tool. It does not guarantee future price movement.
Signals are based on reaction zones, zone taps, rejection candles, and BOS/CHoCH structure breaks.
Swing structure requires confirmed pivots, so BOS and CHoCH lines appear only after the selected swing length confirms the structure point.
Lower timeframes may produce more frequent signals and more noise.
Higher timeframes may produce fewer but cleaner structure events.
Best results usually come from combining the script with higher timeframe context, market session awareness, and proper risk control.
Indicador
