BK AK-Crosswind Falcon

18 ene

🦅👑 BK AK–Crosswind Falcon (Falcon) 👑🦅

All glory to Gd — the true source of wisdom, restraint, and right timing.
AK is honor — my mentor’s standard: clarity, patience, no shortcuts, no gambling.

A previous version of this publication was hidden by PineCoders moderation Demons for “insufficient description.” This republish includes a complete, self-contained explanation (what it does, how it works, and how to use it).

Falcon is a non-overlay oscillator that compresses classic DMI/ADX into one signed momentum line called Zenith, built to do one thing clean: separate real wind from fake wind.

🧠 What It Does

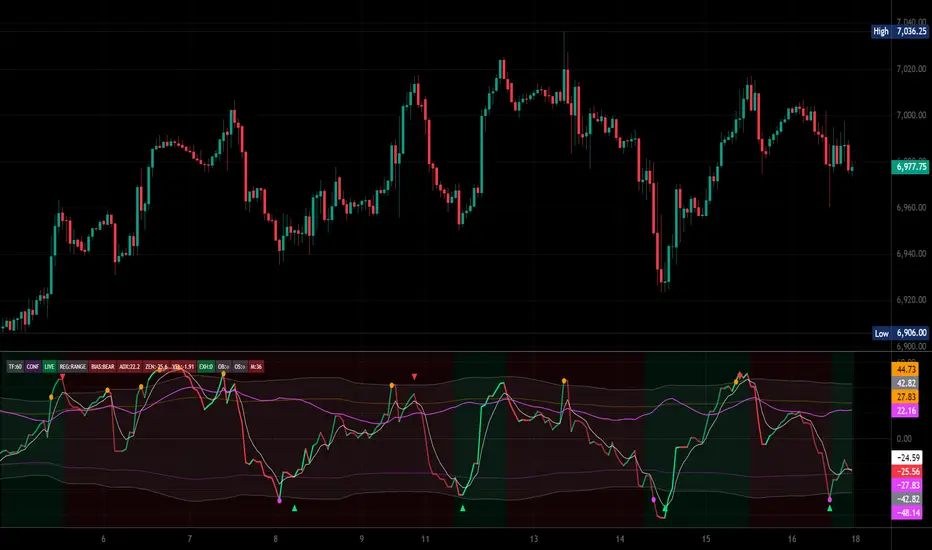

Falcon plots:

Zenith (signed momentum): derived from +DI/-DI dominance and trend strength

Signal line: configurable MA smoothing of Zenith

TREND vs RANGE regime: via an ADX threshold

Bands / extreme zones: dynamic (stdev) or static, for stretch/exhaustion context

Peak / Valley signals: two modes (instant vs confirmed)

Background engines: multiple modes to “paint the legs” or highlight turns

HUD panel: compact table with regime/bias/scores and status

⚙️ How Zenith Is Built (Core Logic)

Falcon computes classic DMI:

diff = +DI − -DI (directional dominance)

ADX (trend strength)

Then Zenith uses one of 3 formulas:

DI Spread × ADX: direction × trend weight

ADX Signed: ADX with sign from DI dominance

DX Signed (default): signed DX for a raw directional read

Signal line is a selectable MA of Zenith (EMA/SMA/WMA/HMA/ZLEMA/DEMA/TEMA/VWMA/RMA).

Also tracked internally:

Velocity: zenVel (1st derivative of Zenith)

Acceleration: zenAcc (2nd derivative)

🧱 Regime + Bias (What the colors mean)

TREND when ADX ≥ Trend Threshold

RANGE when below threshold

Bias: bull when diff ≥ 0, bear when diff < 0

Optional flash on regime/bias switches.

🎨 Background Mode (Pick how the pane “reads”)

Background Mode controls how Falcon paints legs/turns:

Original (Regime/Dir Flash)

Trend bull/bear tint, range gray, optional flash.

Peak↔Valley Legs (Signals)

Background turns green after Valley, red after Peak (uses your signal engine).

Turn Legs (Hybrid: Extreme+Vel+Price) (default)

Attempts the closest “turn read” without repainting:
Extreme zone + velocity flip + optional price confirmation + optional swing location.

Turn Legs (Slope+Extreme)

Uses Zenith slope flips inside extreme zones.

Slope Direction

Simple: green when Zenith rising, red when falling.

Slope Flip Flash

Flashes only on slope flips.

📏 Bands / Extremes + Dot Cooldowns

Bands can be:

Dynamic: stdev(Zenith, lookback) × multiplier

Static: fixed ± value

Extremes are defined by Extreme Zone % (e.g., 0.65 of the band distance).

Extreme dots (OB/OS) can be enabled and now include cooldowns:

OB Dot Cooldown (bars)

OS Dot Cooldown (bars)

Set to 0 to allow dots every bar in extreme.

This prevents “dot spam” when Zenith rides the band.

🎯 Peak / Valley Signals (Two Modes)

Falcon can signal turns inside extreme zones:

1) Instant Cross

Fires immediately when:

Zenith crosses below Signal near/inside upper extreme (Peak)

Zenith crosses above Signal near/inside lower extreme (Valley)

Includes Extreme Lookback so it can catch crosses right at the edge.

2) Confirmed Pivot (default)

Uses pivots on Zenith:

Peak = confirmed pivot high in extreme

Valley = confirmed pivot low in extreme

Important: Pivot mode confirms after Pivot Right Bars, but plots on the pivot bar using an offset, so you understand where the pivot formed.

Signals also respect:

Cooldown bars

Session filter (optional)

⏱️ Session Filter (Optional)

“Block Off-Hours Signals” suppresses signals outside your defined window (start/end hour/min). This is purely a time gate for signals; Zenith itself still calculates.

🧾 Fixed Calculation Timeframe (Optional)

“Use Fixed Calculation TF” runs the DMI/ADX/Zenith math on a selected timeframe using request.security, while you view it on any chart TF (useful for smoothing).

🖥 HUD (One-glance status)

The HUD shows: TF, signal mode, session status, regime, bias, ADX, Zenith, velocity, exhaustion flag, OB/OS state, and a blended master score.

✅ Practical Use

Regime first: TREND = actionable, RANGE = caution.

Bias next: DI dominance is the directional “wind.”

Signals last: use Peaks/Valleys as permission/awareness, not prophecy.

If it’s too chatty: increase cooldowns, tighten Extreme %, or use Confirmed Pivot.

👑 Solomon Lens (Proverbs) — weigh what’s real, strip what’s noise.
Falcon is that: direction × strength, measured, not vibes.

🙏 Respect + Seal
Respect to AK — discipline, patience, clean execution.
All glory to Gd — the source of wisdom and endurance.

🦅👑 BK AK–Crosswind Falcon — read the wind, earn the move. 👑🦅
